Description
Industry-specific attributes:
| Attribute | Value |
|---|---|
| After-sale Service | Other |
| Project Solution Capability | Others |
| Application | Waterproof projects, wall roof |
| Design Style | Contemporary |
Other attributes:
| Attribute | Value |
|---|---|
| Place of Origin | Shandong, China |
| Warranty | 1 Year |
| Material | TPO |
| Feature | Water resistant, Anti-aging, High Strength, Eco Friendly |
| Shape | ROUND |
| Roofing product type | Roofingfelt |
| Brand Name | Huafeng |
| Model Number | 1.2mm 1.5mm 1.8mm |
| Product Name | Thermoplastic Polyolefin Waterproofing Membrane |
| Usage | Building Materials and Real Estate |
| Feature | Waterproof |
| Packing | Plastic outer packaging |
| MOQ | 1000 Square Meter |
| Weight | 25KG |
| Shape | Columnar |

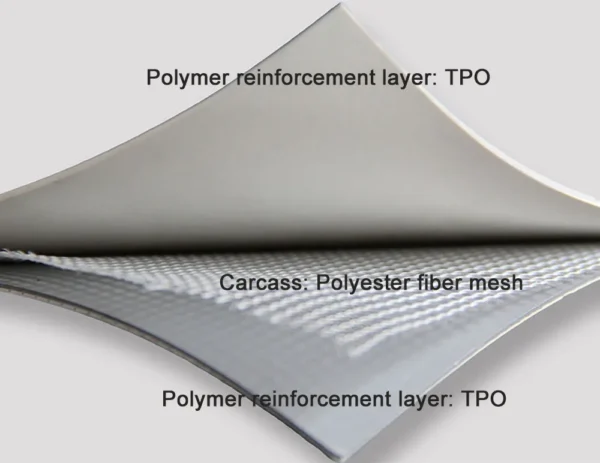

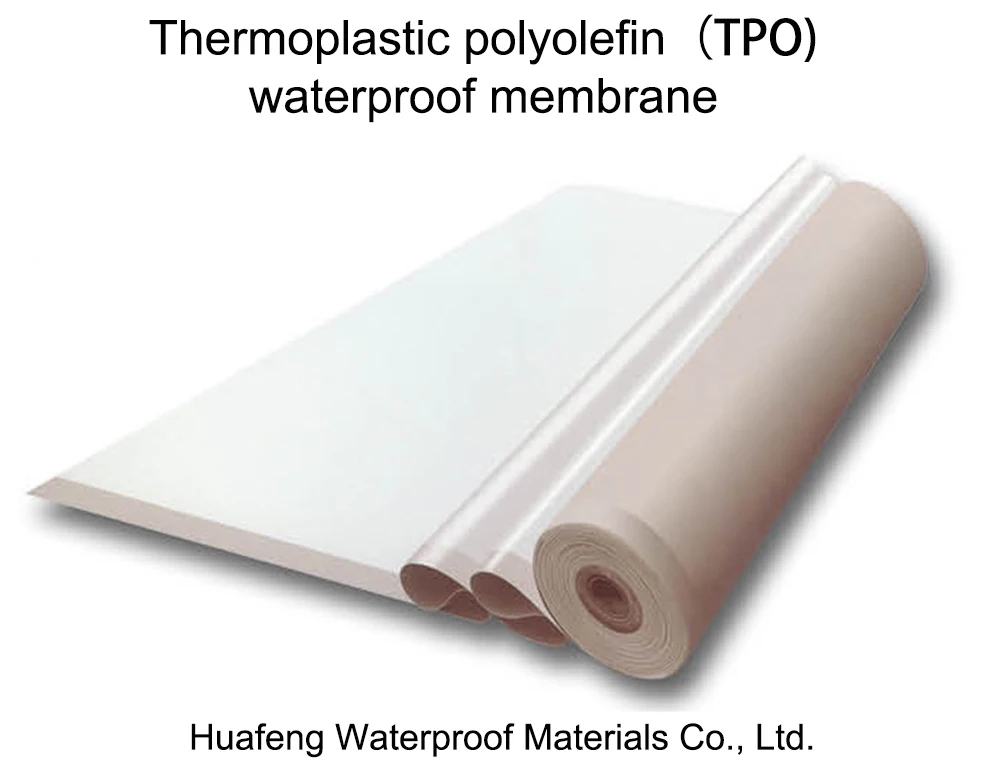

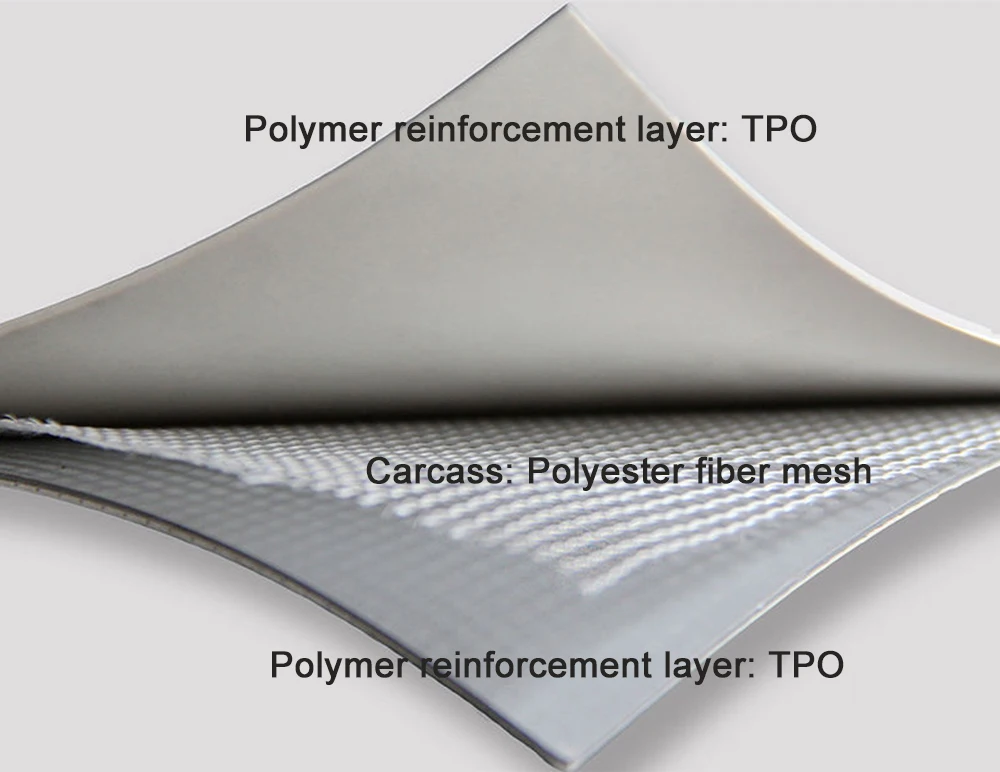

TPO Waterproofing Membrane is a flexible sheet material manufactured through advanced processing technology. It utilizes thermoplastic polyolefin (TPO) as the base material, which combines ethylene-propylene rubber and polypropylene via advanced polymerization technology. Reinforced with a polyester fiber mesh fabric as the carrier, this membrane delivers exceptional performance.
The reinforced TPO membrane features a highly reflective, smooth surface primarily in light colors (e.g., white), which contributes to energy efficiency. Moreover, as a chlorine-free material, it is environmentally friendly and ensures safer construction.
|
Serial number
|
Item
|
Indicator
|
||
|
H
|
L
|
P
|
||
1 |
Minimum resin layer thickness on middle fabric (mm): ≥
|
——
|
——
|
0.40
|
2 Tensile Strength |
Maximum Tensile Force (N/cm) ≥
|
——
|
200
|
250
|
|
Tensile Strength (MPa) ≥
|
12.0
|
——
|
——
|
|
|
Elongation at Maximum Force (%) ≥
|
——
|
——
|
15
|
|
|
Elongation at Break (%) ≥
|
500
|
250
|
——
|
|
3 |
Dimensional Stability (Heat Treatment) (%) ≤
|
2.0
|
1.0
|
0.5
|
4 |
Low Temperature Flexibility
|
No cracking at -40℃
|
||
5 |
Water Impermeability
|
0.3MPa water pressure, 2 hours – no leakage
|
||
6 |
Impact Resistance
|
0.5kg·m impact – no water penetration
|
||
7 |
Static Load Resistance
|
——
|
——
|
20kg static load – no water penetration
|
8 |
Peel Strength (Seam Joint) (N/mm)
|
≥4.0 N/mm or membrane failure
|
3.0
|
|
9 |
Tearing Strength (Right Angle) (N/mm)
|
60
|
——
|
——
|
10 |
Trapezoidal Tear Strength (N/mm)
|
——
|
250
|
450
|
11 |
Water Absorption (70℃, 168h) (%) ≤
|
4.0
|
||
12 Heat Aging (115℃) |
Duration
|
672h
|
||
|
Appearance
|
No blistering, cracking, delamination, adhesion, or holes
|
|||
|
Tensile Force Retention Rate (%) ≥
|
——
|
90
|
||
|
Tensile Strength Retention Rate (%) ≥
|
90
|
——
|
——
|
|
|
Elongation at Maximum Force Retention Rate (%) ≥
|
——
|
——
|
90
|
|
|
Elongation at Break Retention Rate (%) ≥
|
90
|
90
|
——
|
|
|
Low Temperature Flexibility
|
No cracking at -40℃
|
|||
13Chemical Resistance |
Appearance
|
No blistering, cracking, delamination, adhesion, or holes
|
||
|
Tensile Force Retention Rate (%) ≥
|
——
|
90
|
90
|
|
|
Tensile Strength Retention Rate (%) ≥
|
90
|
——
|
——
|
|
|
Elongation at Maximum Force Retention Rate (%) ≥
|
——
|
——
|
——
|
|
|
Elongation at Break Retention Rate (%) ≥
|
90
|
90
|
——
|
|
|
Low Temperature Flexibility
|
No cracking at -40℃
|
|||
14Artificial Weathering (Accelerated Aging) |
Duration
|
1500h
|
||
|
Appearance
|
No blistering, cracking, delamination, adhesion, or holes
|
|||
|
Tensile Force Retention Rate (%) ≥
|
——
|
90
|
90
|
|
|
Tensile Strength Retention Rate (%) ≥
|
90
|
——
|
——
|
|
|
Elongation at Maximum Force Retention Rate (%) ≥
|
——
|
——
|
90
|
|
|
Elongation at Break Retention Rate (%) ≥
|
90
|
90
|
——
|
|
|
Low Temperature Flexibility
|
No cracking at -40℃
|
|||
|
a) Static Load Resistance (required only for mechanically attached roofing membranes)
b) For single-ply roofing systems, the required artificial weathering test duration is 2,500 hours. |
||||
